In the high-end textile lamination and footwear manufacturing sectors, the reliability of a hot melt adhesive film strictly depends on one core metric: Peel Strength under challenging environmental conditions. To provide our global customers and film extruders with absolute transparency, our R&D lab conducted a rigorous head-to-head peel strength tensile test comparing our flagship grade 3295L Hot Melt TPU against a leading market competitor.
The Data Confrontation: 3295L vs. Competitor
When analyzing a Force vs. Displacement graph for hot melt adhesives, three technical benchmarks determine the quality of the polymer matrix: Maximum Force (Fmax), Linear Adhesion Strength (Fmax/Width), and Average Sustained Force (Fmed). The laboratory data reveals a definitive gap in performance.
| Technical Metric (Average Values) | The Market Competitor | Our Grade: 3295L | The 3295L Advantage |
|---|---|---|---|
| Maximum Peel Force (Fmax) | 38.23 N | 45.57 N | + 19.2% Higher Peak Resistance |
| Max Strength per Unit Width (Fmax/L) | 1.93 N/mm | 2.27 N/mm | Superior Interfacial Wetting |
| Mean Sustained Peel Force (Fmed) | 27.43 N | 32.93 N | + 20.1% Stronger Continuous Bond |
Peak Loading Breakthrough
3295L recorded a maximum peak force of 50.20 N, whereas the competitor peaked at only 41.10 N. This proves 3295L can withstand sudden, intense mechanical stress without delamination.
Continuous Bond Superiority
The average ongoing bond strength of 3295L (32.93 N) outperforms the competitor (27.43 N) by over 20%. This translates directly into a longer lifespan under repeated flexing and washing cycles.
Structural Integrity
Our custom polyester-macrodiol architecture provides elite structural integrity, maintaining high-amplitude resistance over the entire displacement spectrum.
Deep-Dive Curve Analysis: Stability & Cohesion
Beyond numerical averages, the Force vs. Displacement Curve tells the real story of polymer quality. 3295L shows excellent elastomeric toughness. Below is a side-by-side comparison of the laboratory test results for both our grade and the competitor.

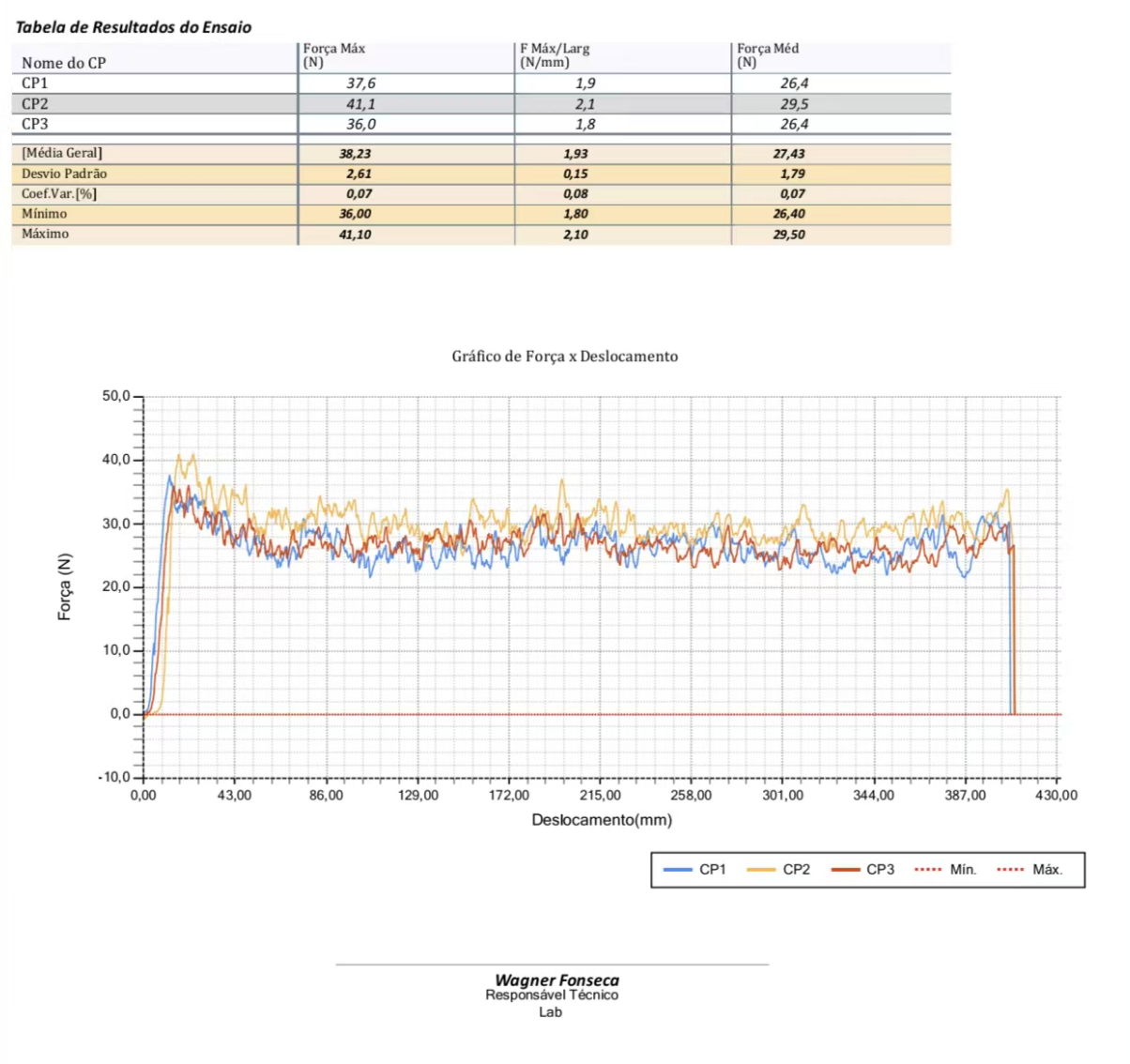

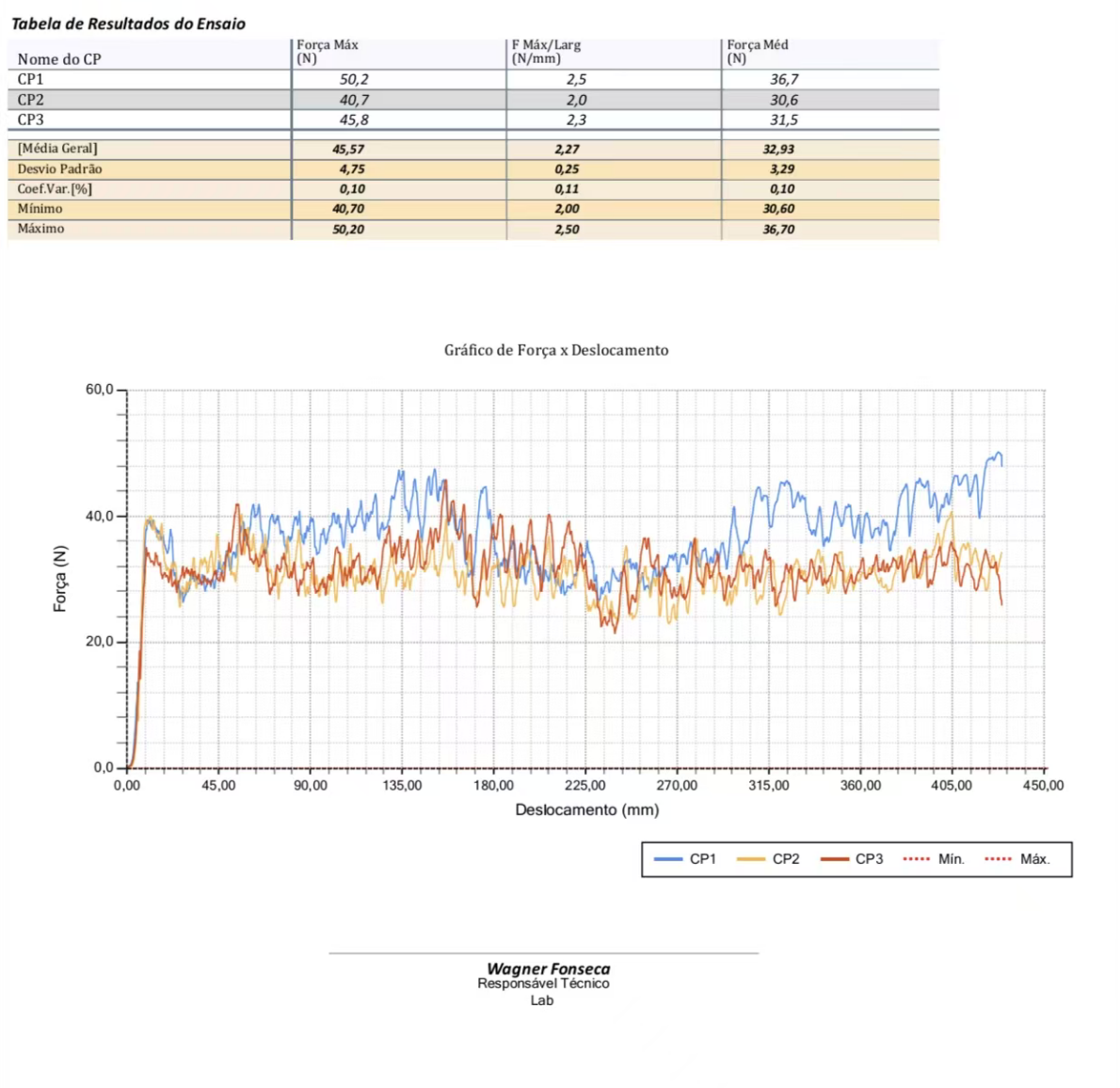

Expert Note: As shown in the graphs, the competitor's force profile (Fig 2) shows significant dropping trends, whereas 3295L (Fig 1) maintains high-amplitude resistance over the entire displacement spectrum.
What This Means for Downstream Manufacturers
For T-Die Film Extruders
3295L features a precisely engineered molecular weight distribution. Its controlled crystallization rate guarantees smooth release properties off the chill rolls, allowing high-speed extrusion without sacrificing final tack properties.
For Footwear & Textile Bonding
A 20% increase in continuous peel strength ensures that shoe counters, hot-transfer graphics, and waterproof seam-sealing tapes remain permanently fused, even under heavy perspiration and laundering.
Conclusion: Engineering Value into Every Micron
The data is definitive. Choosing 3295L Hot Melt TPU isn't just about switching raw materials—it is a strategic upgrade that injects a 20% margin of safety and durability into your end products. If your brand promises premium performance, your adhesive must deliver it.
Ready to upgrade your bonding standard? Contact our technical application team today to request a 3295L TDS or arrange a sample trial batch.
